Call for Price
SENECA RS232/RS485 Serial Converter

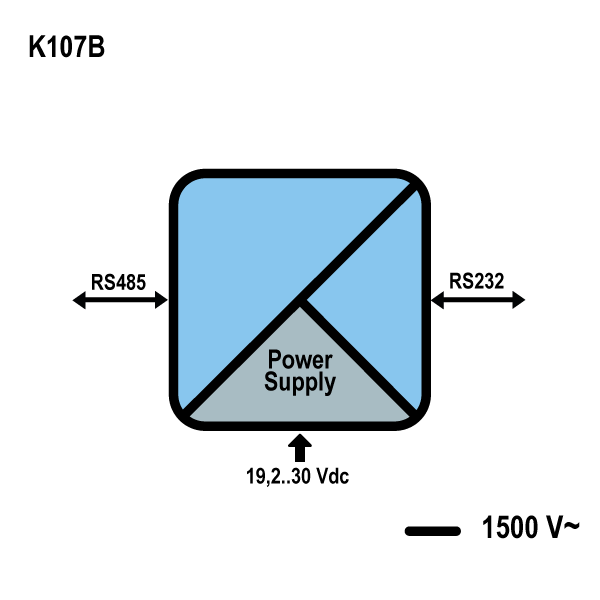

The K107B is designed to accept a single half duplex RS-485 input and give a single, isolated, half duplex RS-232 output, the K107B is ideal for most serial conversions and isolated transmissions over long distances. Being a K-Liner it features a super slim enclosure, just 102.5×93.1×6.2 mm. The DIN-Rail mountable K107B offers optional K-BUS connectivity allowing further savings in time and wiring by bussing together the nominal 24V DC power supply connections.
| ORDER CODE : | K107B |
| DESCRIPTION: | RS232/RS485 serial converter |
| SERIAL PORT 1: | RS232B |
| SERIAL PORT 2: | RS485 Half Duplex |
| INSULATION: | 1,5 kVac a 3 vie |
| HANDSHAKE: | Automatic time switich |
| BAUD RATE: | 1.200..115.200 bps |
| POWER SUPPLY: | 19,2..30 Vdc |
| MAX CONSUMPTION: | 22 mA |
| POWER SUPPLY TECHNIQUE: | Direct on spring cage terminal or distributed with K-BUS connector |
| DIMENSIONS: | 6,2 x 93,1 x 102,5 mm |
| Weight | 0.075 kg |
|---|
