K107USB

Call for Price

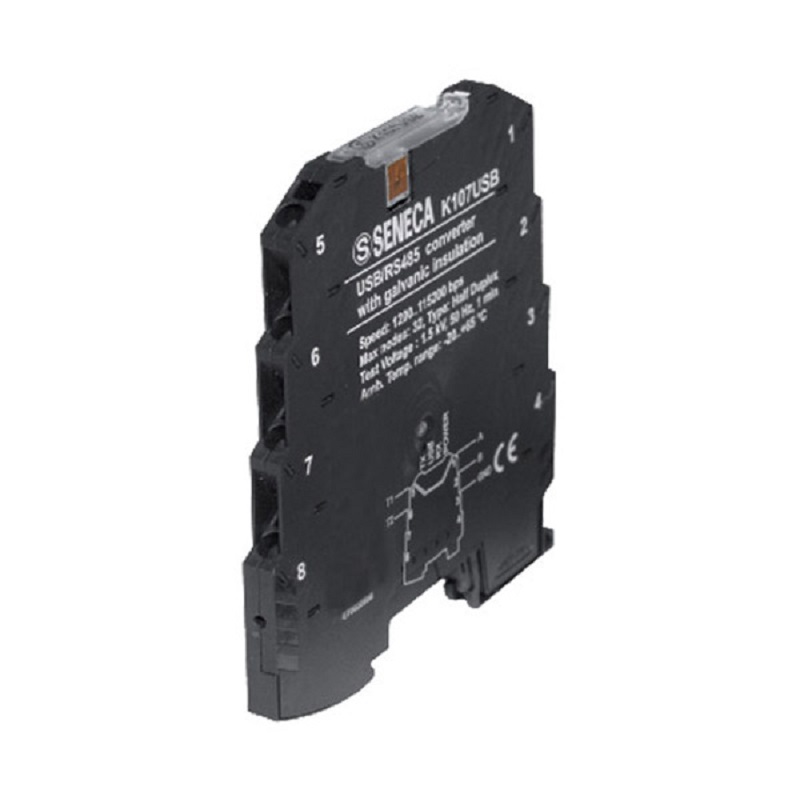

SENECA RS485/USB asyncronous serial converter

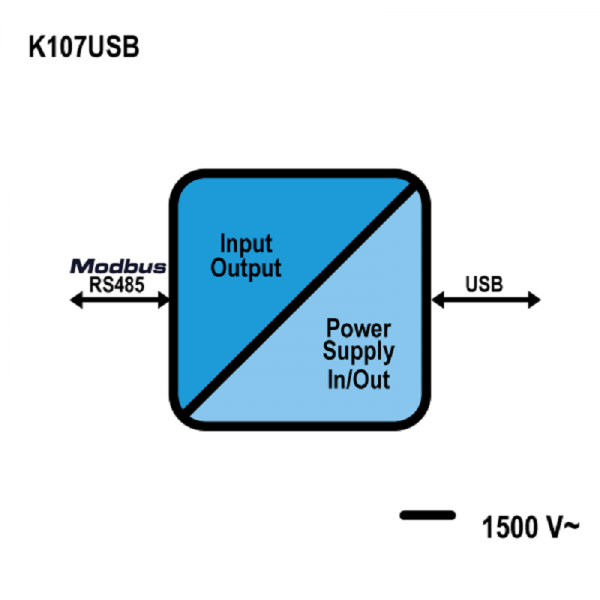

K107USB is an interface able to implement a RS485 serial port by using a PC USB port. The available drivers will recognize the serial interface as a standard serial port; so the use of the product is directly allowed through any software able to communicate with the standard serial ports of the operating system (COM1, COM2, etc). RS485 and USB ports are isolated from each other at 1500 V.
Categories: , , , , ,

Description

ORDER CODE : K107USB
DESCRIPTION: DIN rail RS485/USB aynchronous serial converter
POWER SUPPLY: powered by USB port
MAX CONSUMPTION: 60 mA
OPERATING SYSTEMS: Windows 10/8.1/8/7, Vista, XP
Windows Server 2016, 2012 R2, 2012, 2008 R2, 2008, 2003
Linux kernel 3.0.0-19 and above
Mac OS X 10.3 to 10.9 and above, Mac OS 9, Mac OS 8
Windows Mobile 6.5/5, Windows Mobile 2003SE/2003
Windows CE 2013, Windows CE 7.0/6.0, Windows CE 5.2-4.2
COMPATIBILITY: USB 1.1 and 2.0
DIMENSIONIS WXHXD: 6,2×93,1×102,5 mm
ACCESSORIES: Connection cable (USB side) and CD driver

Additional information

Weight 0.075 kg

Download

DataSheet – K107USB

Catalog – K Line Compact Converters
