Call for Price

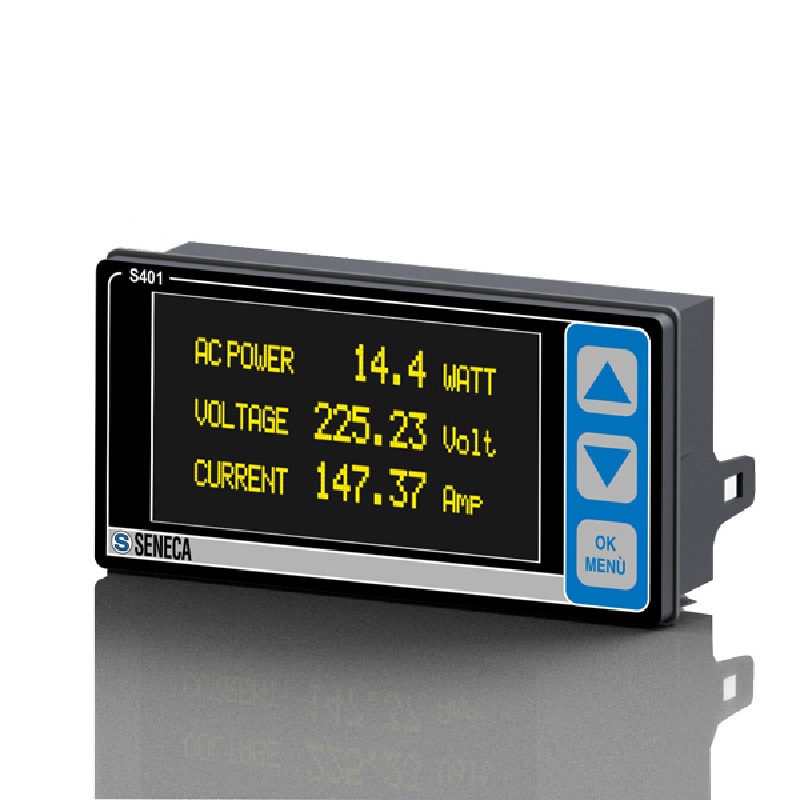

SENECA ModBUS RTU indicator with OLED 2,7″ display

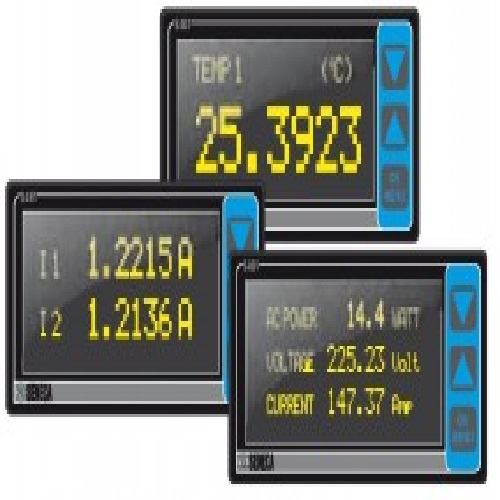

These display utilise OLED technology (Organic LED technology). OLED displays have a rapid response time, wide viewing angles, exceptional colour rendition and outstanding contrast and brightness display ratios. S401 an OLED indicator with Modbus communication – a HMI panel mount compact device, with a wide range visualization (up to 30 measurements) Programming is achieved via supplied software interfaced to a PC, or from the front keypad / menu. Interfaces to RS485 Modbus Master are as well as RS485 Modbus Slave. S401 has several master functions (27 math functions and 20 readings from slave modules)
| ORDER CODE : | S401-L |
| DESCRIPTION: | ModBUS RTU indicator with OLED 2,7″ display |
| DISPLAY: | OLED 2,7″, 128 x 64 pixel |
| DIMENSIONS: | 96 x 48 x 40 mm |

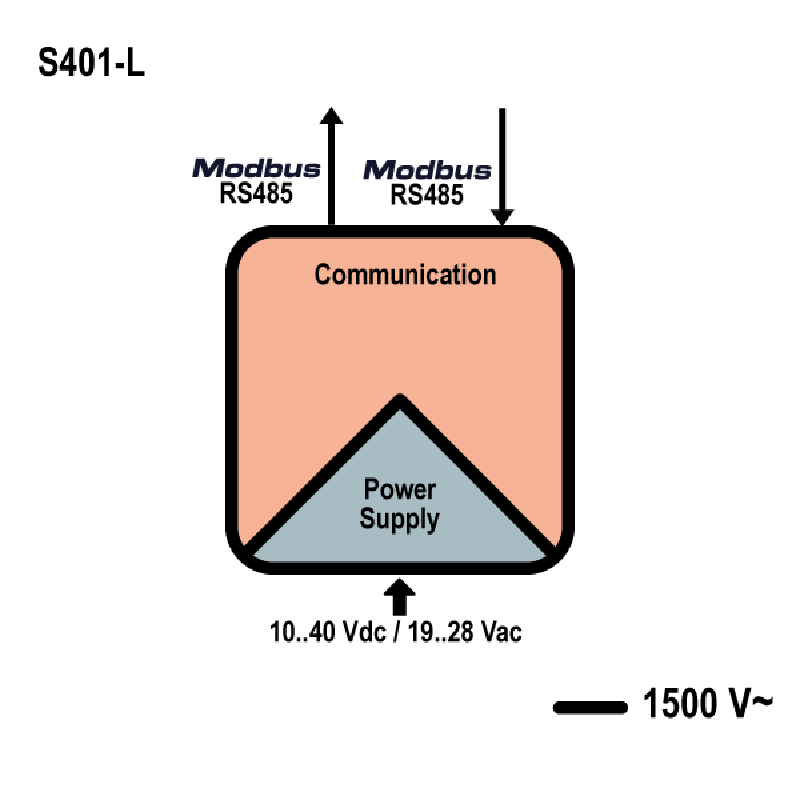

| POWER SUPPLY: | 10-40 Vdc / 19-28 Vac |
| SERIAL INTERFACE: | Nr 2 RS485 ModBUS RTU ports |
| ACQUISITION: | Analog or digital values from master / slave devices |
| SETTINGS: | Language, brightness, contrast, communicatio parameters, range, offset, measure unit |
| DISPLAYING: | up to 30 values (20 read, 10 calculated), max 3 values in the same page, freely configurable |
| Weight | 0.4 kg |
|---|
