Description
ORDER CODEĀ : | S604B-ROG |

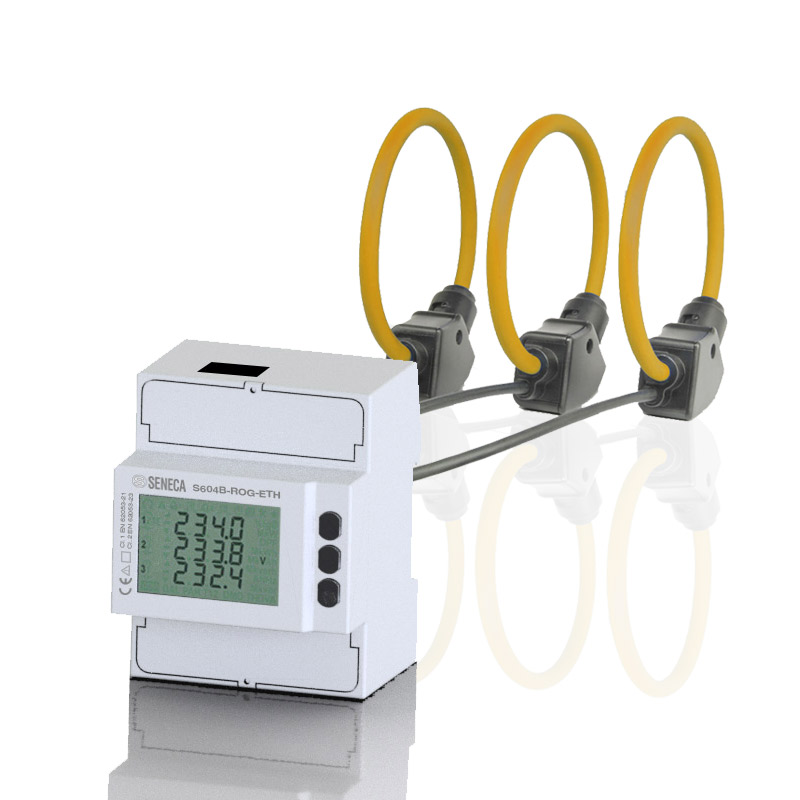

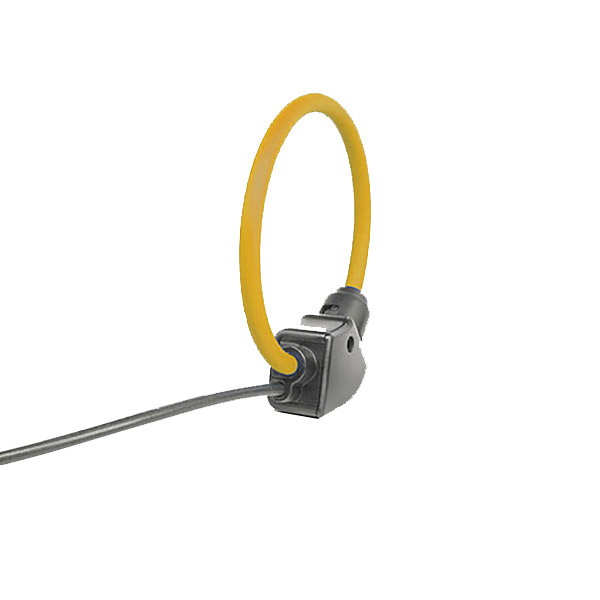

DESCRIPTION: | KIT with S604B power meter and three Rogowski coils with the same lenght |
POWER SUPPLY: | 180..285 Vac (self powered models) 85..265 Vac (auxiliary powered models) |
DISPLAY: | Backlighted LCD 43×29 mm |
HARMONICS: | No |
RECORDINGS: | Average values for active & reactive powers |
MEMORY FOR DATA LOGS: | 1 MB |
ACCURACY: | 0,2% (voltage), 0,4% (current), 0,5% (power) |
CONNECTIONS: | 3 per Rogowski coils input |
INTERFACES: | RS485, LAN |
CERTIFICATIONS: | CE |
DIMENSION: | 72x90x65 mm |
