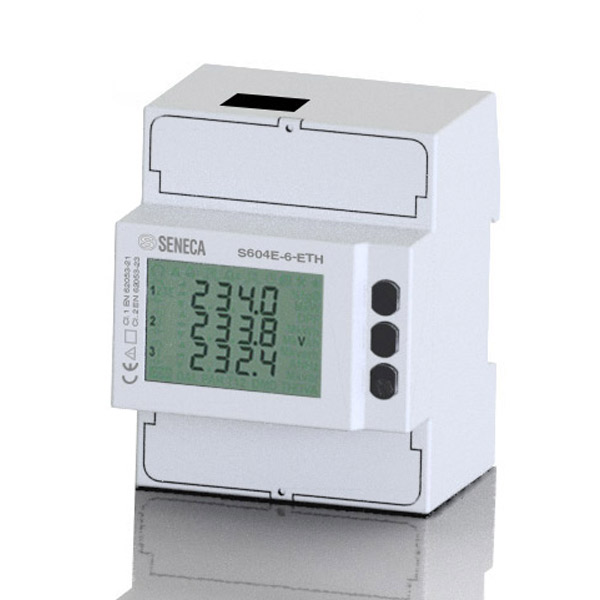

SENECA Three-Phase Power Meter ENERGY Plus Version
S604E is an innovative instrument for measurement and recording of the electrical parameters. It is particularly suitable for consumption analysis and control, with an excellent quality/price ratio. S604E is suitable to establish the measurement points on the plant. On request, the instrument can communicate through the RS485 serial port by ModBUS RTU/ASCII protocol or through LAN port by ModBUS TCP-IP protocol.
| POWER SUPPLY | 85..265 Vac (auxiliary powered models) |
| DISPLAY | Backlighted LCD 43×29 mm |
| HARMONICS | Yes (up to 15th) |
| RECORDINGS | MIN/AVG/MAX values for all powers |
| MEMORY FOR DATA LOGS | 8 MB |
| ACCURACY CLASS | 0,2% (voltage), 0,4% (current), 0,5% (power) |
| CONNECTIONS | 1/5A (external CTs), 80A (direct), Rogowski Coils |
| INTERFACES | RS485, LAN |
| CERTIFICATIONS | CE |
| DIMENSION | 72x90x65 mm |
| Weight | 0.365 kg |
|---|
