SENECA Passive Current Transducer 100 Adc For 4..20 Ma Current Loop

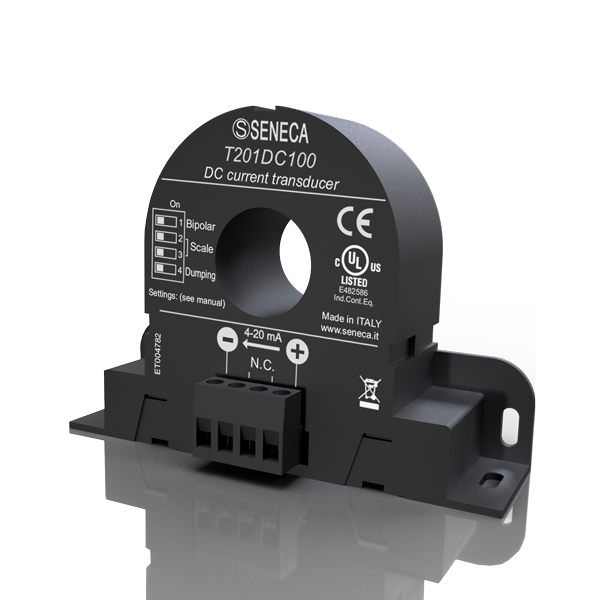

T01DC100 is an isolated and passive, contact-less loop powered direct current transducer. The T201DC100 has functions and look very similar to a standard current transformer, but it has stress features of measuring the continuous current component that pass-through it. For its electrical endurance, ease of use and compact dimensions, the T201DC100 fits every kind of current measurement to 100 Adc.
| ORDER CODE : | T201DC100 |
| DESCRIPTION: | Passive current transducer 100 Adc for 4..20 mA current loop |

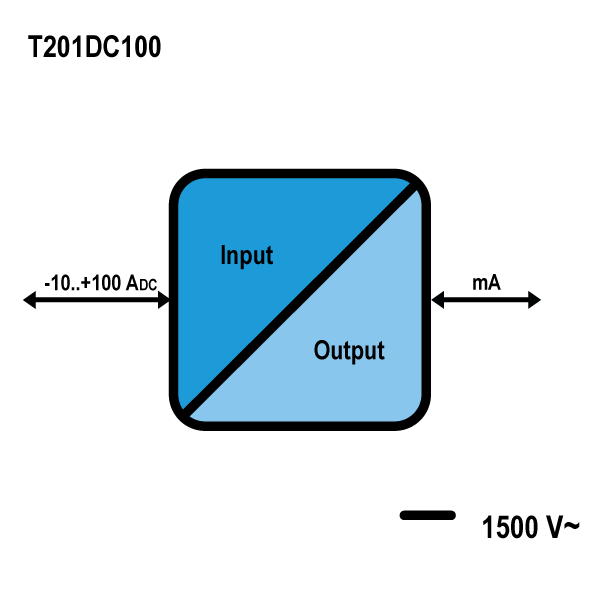

| INPUT SCALES: | Monopolar 0..10 A, 0..25 A, 0..50 A, 0..100 A; bipolar -10..0..+10 A, -25..0..+25 A, -10..0..+50 A, -25..0..+100 A |
| INSULATION: | 1,5 kVdc on raw conductor |
| OUTPUT/POWER SUPLPLY: | 4 ..20 mA passive current loop |
| ACCURACY CLASS: | 0,2 |
| CONNECTOS: | Faston 6,3 x 0,8 mm for loop 4..20 mA; 17,8 mm hole for current cable |
| DIMENSION: | 68 x 95 x 25 mm |
| Weight | 0.1 kg |
|---|
