Description

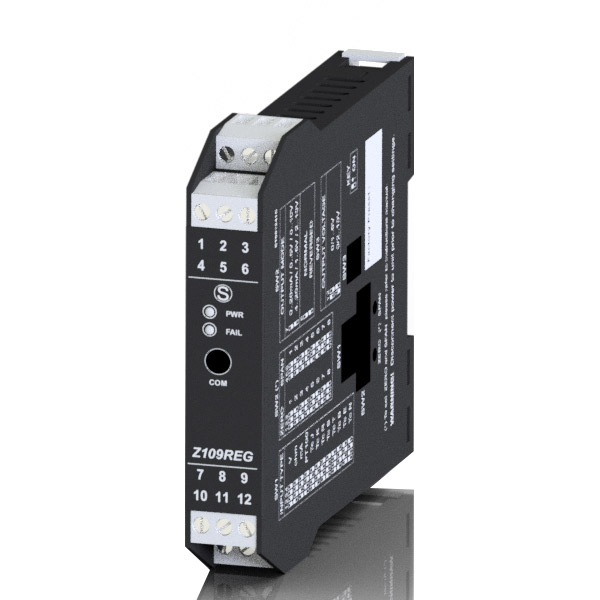

ORDER CODE : | Z109REG |
DESCRIPTION: | Analog universal converter with galvanic isolation |
INPUT: | bipolar voltage up to 10 Vdc 4 scales, bipolar current up to 20 mA, thermoresistance (Pt100, 2/3 wires, -200..+600°C), thermocouple J,K,R,S,T,B,E,N, potentiometer (500 ohm..1,5 kohm) |
OUTPUT: | current (0/4..20 mA), voltage (0..5/0..10/1..5/2..10 V) |
PRECISION: | 0,2% |
POWER SUPPLY: | 19..40 Vdc, 19..28 Vac |
INSULATION: | 1.500 Vac |
PROGRAMMING: | Dip-switch or software (Z-SETUP) |
