Call for Price

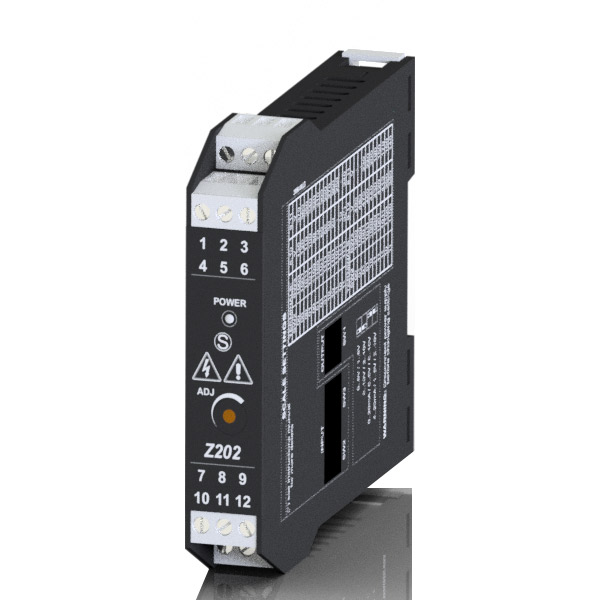

SENECA AC Voltage To DC Isolator Converter (Power Sup. 9..40 Vdc / 19..28 Vac)
Z202 accept an alternate voltage (10..490 Vac) and provides an isolated analog output (mA or V). It disposes also of dip switches to set the specific range, input and output. It can be requested with low or high power supply. Z202 can be used also as a microammeter (500 µAfs).A 3-way galvanic isolation among Power supply // input // output circuits assures the integrity of your datas.
| ORDER CODE : | Z202 |
| DESCRIPTION: | AC voltage to DC isolator converter (9..40 Vdc / 19..28 Vac) |
| POWER SUPPLY: | 9..40 Vdc / 19..28 Vac (50-400 Hz) |
| INPUT: | Voltage |
| OUTPUT: | Corrente (0..20, 4..20 mA), tensione (0..5, 0..10, 1..5, 2..10 V) |
| ACCURACY: | 0,25% |
| INSULATION: | 3.750 Vac (output/power supply), 1.500 Vac (other cicuits) |
| Weight | 0.16 kg |
|---|
