Call for Price

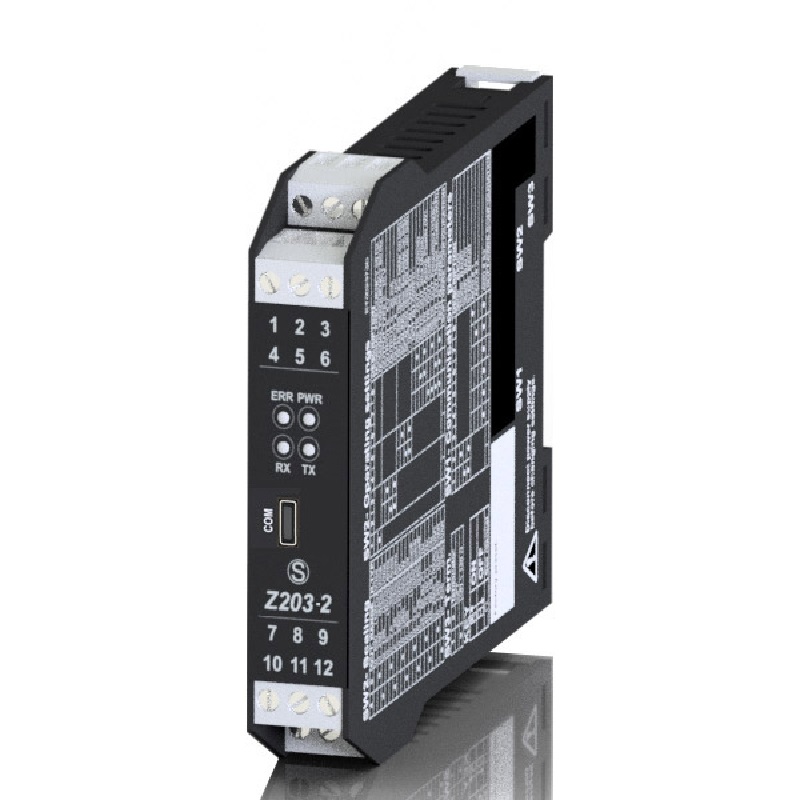

SENECA AC single phase advanced network analyzer with micro USB port
Z203-2 is a complete single-phase network analyzer suited for use with up to 500 Vac voltage range and 5A current. The instrument provides all the following electrical measurable variable: Vrms, Irms, Watt, Var, Frequency, CosĪ. Measurements are available through Modbus serial communication or through analog retransmission (ma or V). 3-way galvanic isolation among Power supply // input // RS485 circuits assures the integrity of your data.
| PRODUCT CODE: | Z203-2 |
| DESCRIPTION: | Advanced single-phase network analyzer |
| VOLTAGE INPUT: | Up to 500 Vac |
| CURRENT INPUT: | Up to 5 A |
| COMMUNICATION PORTS: | RS485 on IDC10, micro USB port on front panel |
| INSULATION: | 3.750 Vac |
| OUTPUT CHANNELS: | Analog output mA/V, digital output for energy |
| POWER SUPPLY: | 10..40 Vdc / 19..28 Vac |
| ACCURACY CLASS: | 0.5 |
| Weight | 0.16 kg |
|---|
